SPECIFICATIONS
1 Pure sine wave solar inverter(on/off Grid)
2 Output power factor 1.0
3 WIF1&GPRS available forloS and Androide
4 Inverter can run without battery
5 One-key restoration to factory Settings
6 Built-in Lithium battery automatic activation
7 AC output voltage 120VAC
Battery: 24V
Brand Name: SUMRY
Certification: CE
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Feature: work without battery
Feature 2: reverse the flow of excess current back into the grid
Full Load: 3600W
High-concerned chemical: none
MPPT Voltage Range: 60~450VDC
Maximum AC input Current: 40A
Maximum Conversion Efficiency (DC/AC): 98%
Maximum PV input Power: 4200W
Maximum Solar Charging Current: 120A
Maximum input Current: 1/18A
Model Number: 3600W 24V
Nominal DC Voltage/Maximum DC Voltage: 360/500VDC
Nominal Output Current: 30A
Nominal Output Voltage: 120VAC (100/105/115V settable
Output Current: 30A
Output Frequency: 50/60HZ
Output Type: SINGLE
Output Voltage Range: 90-150VAC

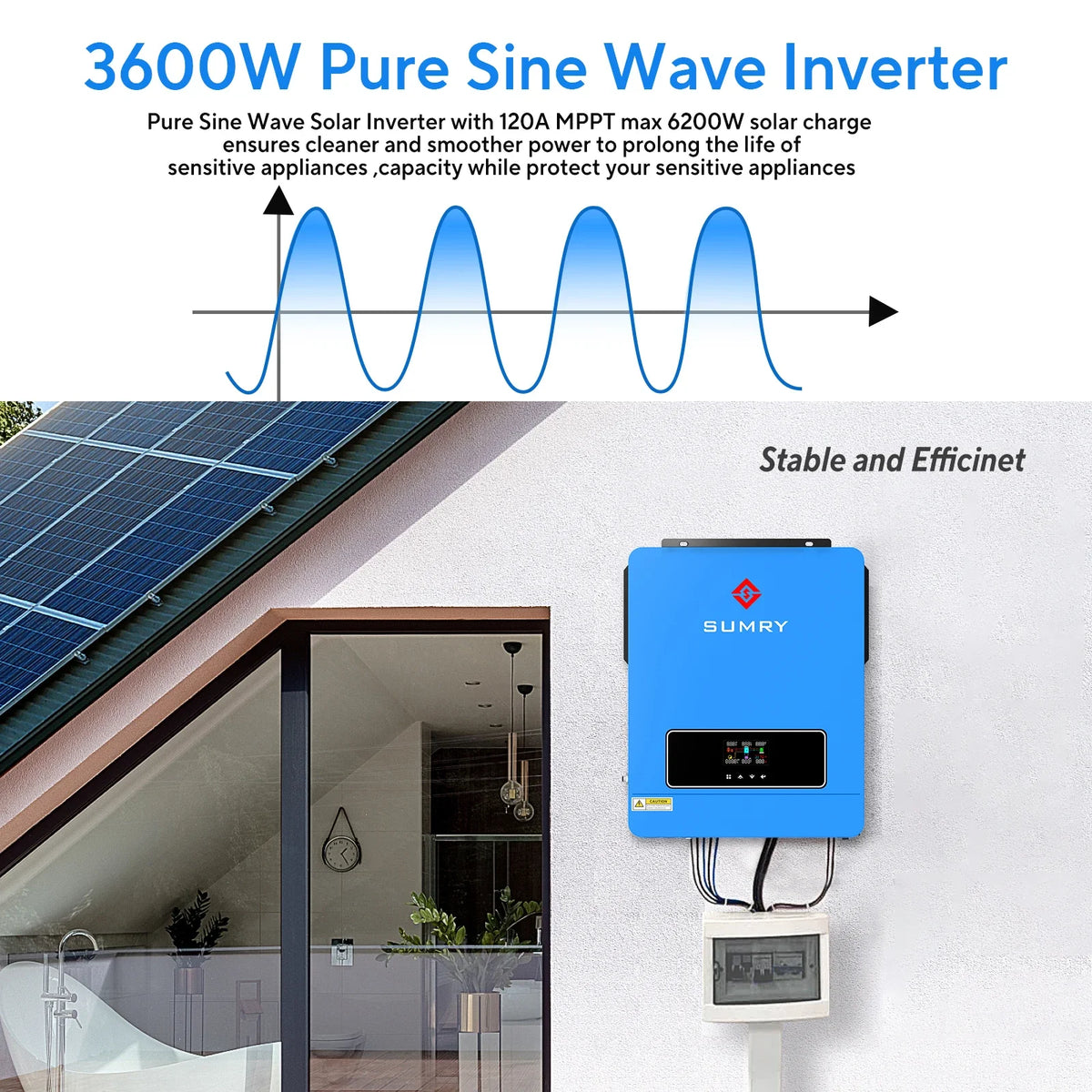

Output Wave Form: Pure sine wave
Rated Output Power: 3600W/3600VA
Size: 500*415*180MM
Weight: 10KG
